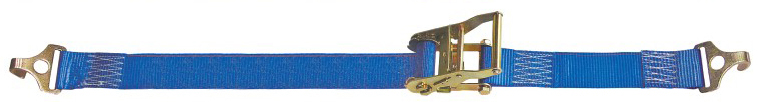

2“Van Ratchet Strap
|
Spring E Fitting Type |
Breaking strength 3,000 lbs/1,364 kg Working load limit 1,000lbs./455kg |
|
|
P/N |
Length |
|
| VRS5012EF | 12FT |
 |
|
VRS5016EF |
16FT |
 |
|
VRS5020EF |
20FT |
 |
|
Wire Hook Type |
Breaking strength 3,000 lbs/1,364 kg Working load limit 1,000lbs./455kg |
|
|
P/N |
Length |
|
|
VRS5012LW |
12FT |
 |
|
VRS5016LW |
16FT |
 |
|
VRS5020LW |
20FT |
 |
|
Series F Hook Type |
Breaking strength 2,000 lbs/909 kg Working load limit 667lbs./303kg |
|
|
P/N |
Length |
|
|
VRS5012NF |
12FT |
 |
|
VRS5016NF |
16FT |
 |
|
VRS5020NF |
20FT |
 |

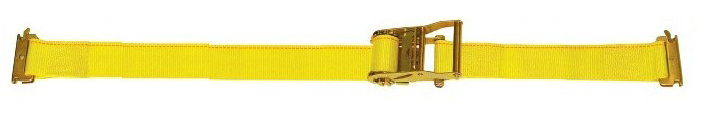

2” Van Cambuckle Strap
|
E Fitting Type |
Breaking strength 2,500 lbs/1,136 kg Working load limit 833 lbs./379kg |
|
|
P/N |
Length |
|
|
VCS5012EF |
12FT |
 |
|
VCS5016EF |
16FT |
 |
|
VCS5020EF |
20FT |
 |
|
Series F Hook Type |
Breaking strength 2,000 lbs/909 kg Working load limit 667 lbs./303kg |
|
|
P/N |
Length |
|
|
VCS5012NF |
12FT |
 |
|
VCS5016NF |
16FT |
 |
|
VCS5020NF |
20FT |
 |
2"Rope Tie Off
 |

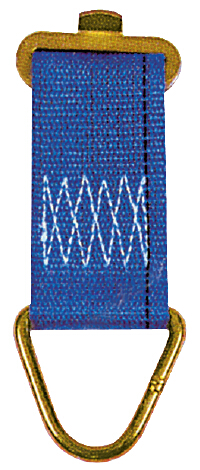

P/N RTO5006EF 6"Spring E Fitting Breaking Strength 3,000lbs/ 1,364kgs Work Load limit 1,000lbs/ 455kgs |
 |

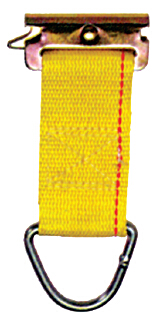

P/N RTO5006TF
6"3Pieces Fitting
Breaking Strength
3,000lbs/ 1,364kgs
Work Load limit
1,000lbs/ 455kgs
|
 |

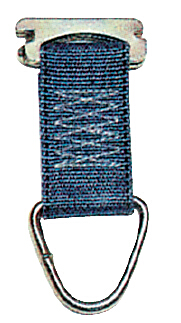

P/N RTO5006BF
6"Butterfly Fitting
Breaking Strength
1,500lbs/ 682kgs
Work Load limit
500lbs/ 227kgs
|
